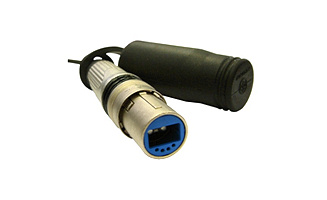

OpticalCON DUO
Neutrik’s opticalCON DUO cable connector accommodates a standard optical LC-Duplex connector in a ruggedized and durable all-metal housing. It features a spring loaded push-pull locking mechanism and an excellent cable retention utilizing aramid yarn. The optical connection is exceptional well protected against dirt and dust by an automatically operated sealing cover.
Download Neutrik optical connectors

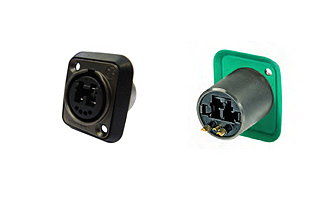

DUO Chassis Connector
DUO Chassis Connector accommodates standard LC connectors on the rear for simple installation. Designed as feed through with automatic sealing shutter Shutter with silicone gasket protects optical connection from dust and dirt Waterproof according to IP65 (ingress protection in mated condition) Rubber sealing gasket (black, blue, green to identify fibre mode) Connection on the front side either by a rugged opticalCON or by the use of a standard LC connector

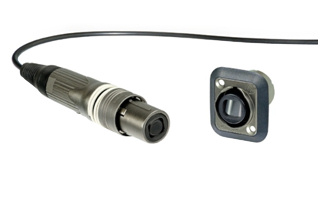

OpticalCON QUAD
The opticalCON QUAD cable connector accommodates 4 PC optical channels based on conventional and proven LC connectivity protected by a ruggedized and durable all-metal housing. It features a spring loaded push-pull locking mechanism and an excellent cable retention utilizing aramid yarn. The optical connection is exceptional well protected against dirt and dust by an automatically operated sealing cover.

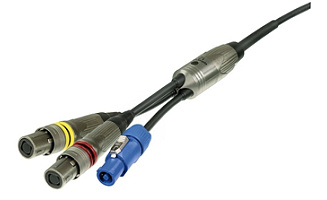

Hybrid
Hybrid (240V AC /16 A) multichannel cable solution (8 or 4 channels) based on the opticalCON QUAD and powerCON, optimized for ENG/SNG applications, excellent cable retention due to aramid yarn, black PUR outer jacket.
