Volamp Active Products: Transport Systems

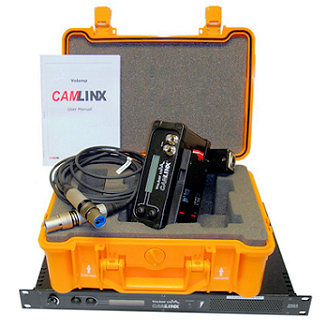

CAMLINX

volamp camlinx

Provides a multi-channel bi-directional fibre optic communication link between a base unit and a generic camera adapter.  Designed to work with a wide range of SD and HD professional video cameras and camcorder units the system carries a range of video, audio and data channels to provide a full studio camera style interface at a fraction of a system cameras’ cost.

Standard Features
Transmit and Return SDI/HD-SDI Video Channels Genlock reference – tri-sync or Black and Burst Analogue audio transmit and receive pairs for Intercom 2 x Bi-directional RS232/422 Data Channels Camera Head Tally light and GPO LCD system setup and operational diagnostics displays 12V 60W – Remote Power facility over 250M

Optional Features
Analogue Audio Stereo Pair Send and Receive Modules with pre-amp and phantom power

Download Camlix information PDF

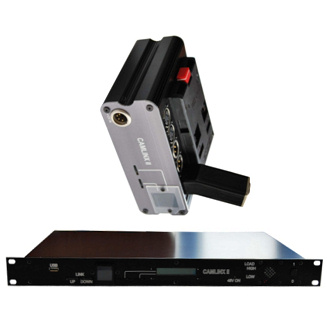

CAMLINX II

volamp camlinx2

Camlinx II adds to the standard features of Camlinx and provides additional 3G Video (with optional dual link support for 3D), Composite Video, Audio, Ethernet and Time code.

Download Camlix II information PDF

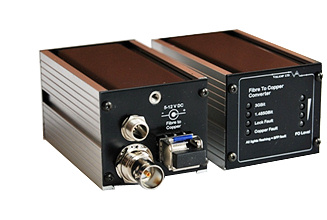

Copper to Fibre Media Converters – Simplex TX / RX units

volamp Copper to Fibre Media Converters – Simplex TX / RX units

Converts SMPTE SDI video signals carried over 75 ohm copper cable to an optical signal for use with a single-mode fibre.
SD, HD, 3G and DVB formats supported.

Features:
Maybe free standing or rack mounted in a 1U rack
5 – 14 volts dc power range
Automatic rise time control
Suitable for pathological inputs
Re -clocking to minimize signal jitter
LC Connectors
Integrated Diagnostics and LED Status

Download  SFP Rx Converter information PDF

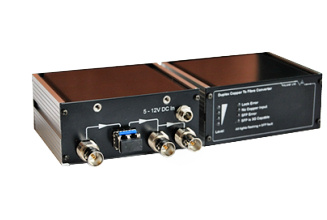

Copper to Fibre Media Converters – Transceiver TX and RX units

volamp Copper to Fibre Media Converters – Transceiver TX and RX units

Converts SMPTE SDI video signals carried over 75 ohm copper cable into optical signals for use with 2 x single-mode fibres. Bi-directional signal transport.
SD, HD, 3G and DVB formats supported.

Features:
Maybe free standing or rack mounted in a 1U rack
5 – 14 volts dc power range
Automatic rise time control
Suitable for pathological inputs
Re -clocking to minimize signal jitter
LC Connectors
Dual SDI copper outputs
Integrated Diagnostics and LED Status

Download SFP Tx Converter information PDF
