Senter Test Equipment

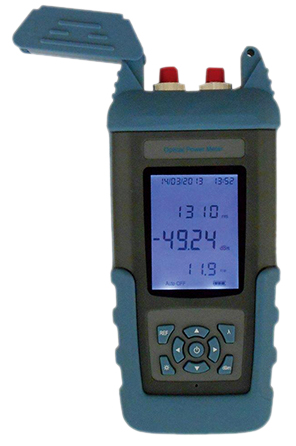

ST800K-U Optical Power Meter

Senter Test Equipment ST800K-U Optical Power MetterWith a wide range of functions, ST800K-U optical power meter is a powerful tool for use in fiber-optic installation and maintenance. Its rugged, durable construction makes it the perfect choice for a wide range of field applications.

ST800K-U Optical Power Meter can test optical power within the range of 800~1700nm wave length. There are 850nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm, six kinds of wavelength calibration points. It can be used for linearity and non-linearity test and it can display both direct and relative test of optical power.

This meter can be widely used in the test of LAN, WAN, metropolitan network, CATV net or long-distance fiber net and other situations.

Download Senter ST800K-U Optical Power Metter information PDF

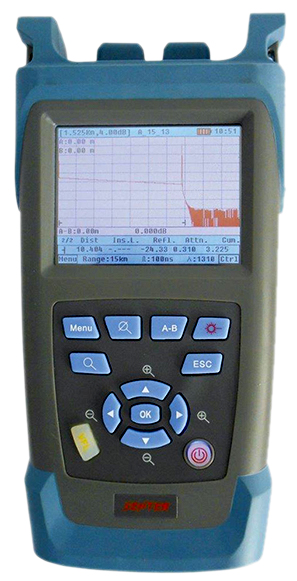

ST3200 OTDR Optical Time Domain Reflectometer

Senter Test Equipment ST3200

ST3200 OTDR (Optical Time Domain Reflectometer) is an intelligent optical fiber
communication tester. This tester is easy to use and portable, which has a 3.5-inch color LCD touching screen. It also possesses events intelligent analysis and more user
friendly operation.

It is an ideal test instrument for the fiber testing and troubleshooting. It can test the length of optical fiber and optical fiber cable attenuation coefficient. It can exactly display the loss distribution curve of the optical fiber and cable as well as the loss between two points and the joint loss. It also can test the distance between two points and the position of joint,fault point as well as breaking point. This tester has VFL (Vision Fault Locating) system.
So it becomes convenient to test the fault location of jumper wire.

Download ST3200 Basic OTDR information PDF

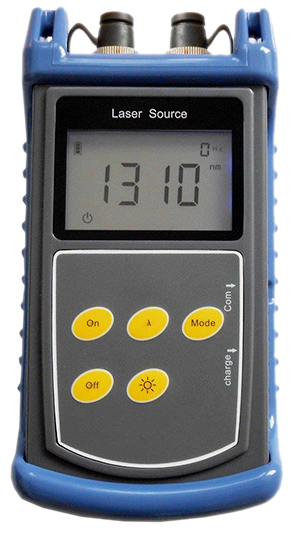

ST815 Laser Source

Senter Test Equipment ST815C_ST815DST815 Laser Source can support stable laser signal on many kinds of wavelength, it can identify fiber,test fiber loss and continuity accurately, help to evaluate transmission quality of fiber chain as well.

It supplies high performance laser source for field test and lab project development. With features of durable structure, large LCD display with backlight and friendly operation interface, the ST815 advanced stability handheld optical light source provides a lot of convenience for your field work.

High stability of output power and quite stable output wavelength, it is an ideal instrument for optical network installation, trouble shooting, maintenance and other optical fiber related systems.

It can be widely operated for LAN, WAN, CATV, remote optical network, ect. Cooperate with ST800 series Optical Power Meter; it can distinguish fiber, test optical loss and connection, help to evaluate fiber transmission performance.

Download ST815 Laser Source Brief Introduction information PDFV1.2
